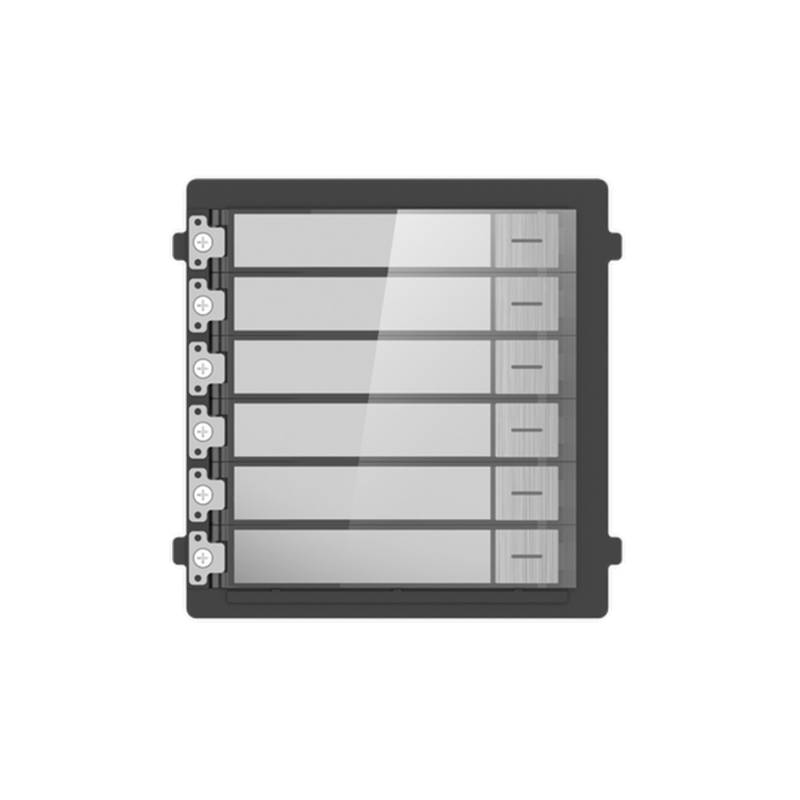

HIKVISION - DS-KD-KK Push button module

HIKVISION - DS-KD-KK Push button module

Modular door station Nametag unit, needs mouting bracket
6 call buttons, including 4 button covers, IP65
Dial the resident at one-touch
Backlight compensation
Easy and extend

Specification

Communication protocol: TCP/IP, RTSP
Wired network10/100 Mbps self-adaptive Ethernet
Button: 6
Installation: Flush mounting, surface mounting
Weight: 529 g (with packaging), 265 g (without packaging)
Protective level: IP65, IK07
Power supply method: 12 VDC (powered for other module)
Working temperature: -40° C to +55° C(-40° F to 131° F)
Working humidity: 10% to 95%
Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
Battery/Power supply: 12 VDC (powered for other module)
Application environment: Outdoor
Power consumption: ≤ 2 W
