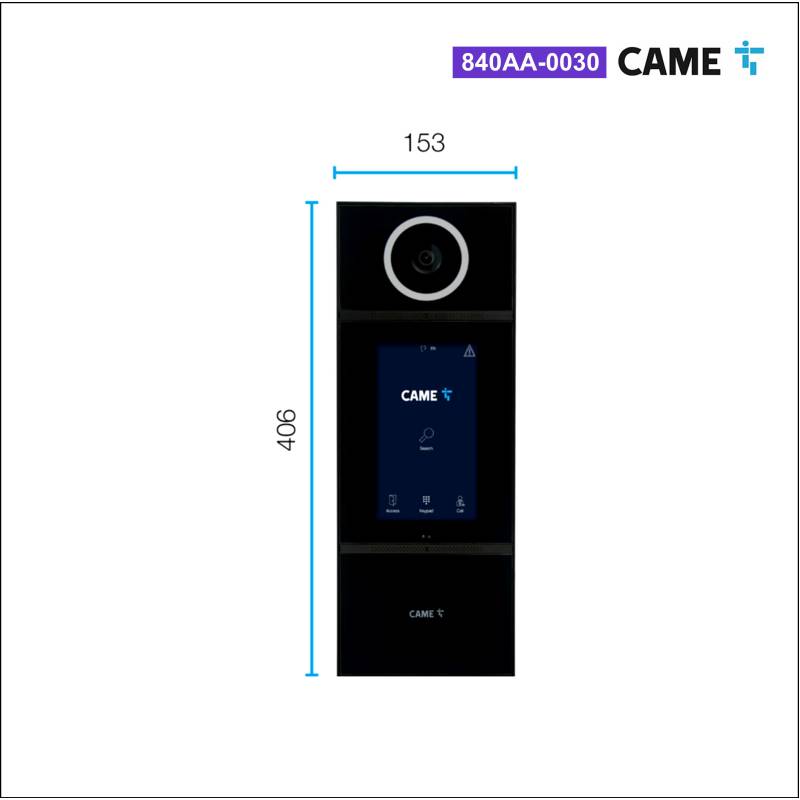

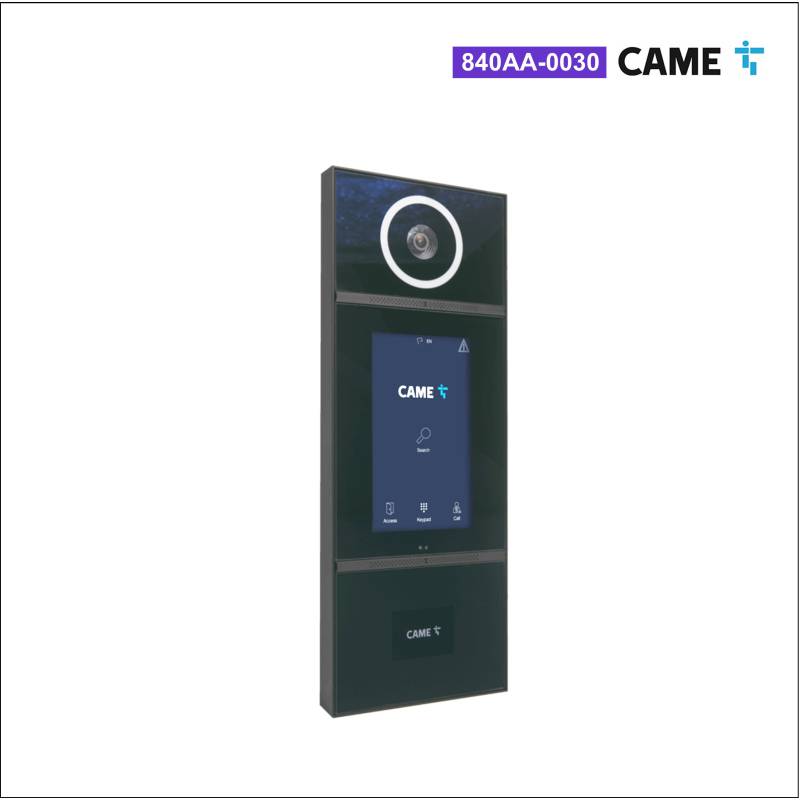

Came bpt 840AA-0030 External wall video intercom unit XVP S

840AA-0030

     XVP S

     Video door entry panel with touch screen display for IP360 system, wall-mounted.
     Monolithic entrance panel in 5 mm thick shatterproof tempered glass, designed for wall mounting, with certified IK08 impact resistance rating.
     High brightness 7" anti-glare capacitive TFT touch screen with Optical Bonding technology, resolution 1024 x 600 pixels. Customizable multilingual graphic interface.
     Camera sensor with 1280x720 HD resolution and HDR technology with integrated microprocessor for digital signal processing.
     "Ultra wide eye" wide angle optics with 130° horizontal and 95° vertical opening.
     Uniform illumination of the subject using 30 high-efficiency white LEDs and anti-glare diffuser.
     Equipped with RTSP protocol for 24/7 viewing of the camera video stream on CCTV systems.
     It allows access control via Bluetooth with smartphone App or via RFID badge/tag thanks to the possibility of housing the MTMRFID access control module (code 60020250), not supplied, or third-party readers in the lower area.
     Equipped with local control for electric lock (12V), auxiliary contact (1A, 30V max), inputs for door opener button and for door status signaling (programmable I/O), output for activating external cameras (I/O programmable).
     RJ45 port for network connection, PoE (IEEE 802.3at POE+ standard, 25.5W) or local 12-24 V DC power supply. Equipped with presence sensors to wake the device from stand-by when approaching the entrance panel and a brightness sensor for automatic adjustment of the display brightness based on the ambient brightness.
     Integrated web server for configuration and firmware updates.
     Possibility to manually configure various device parameters from the graphical interface.
     It guarantees an IP55 water and dust protection rating.
