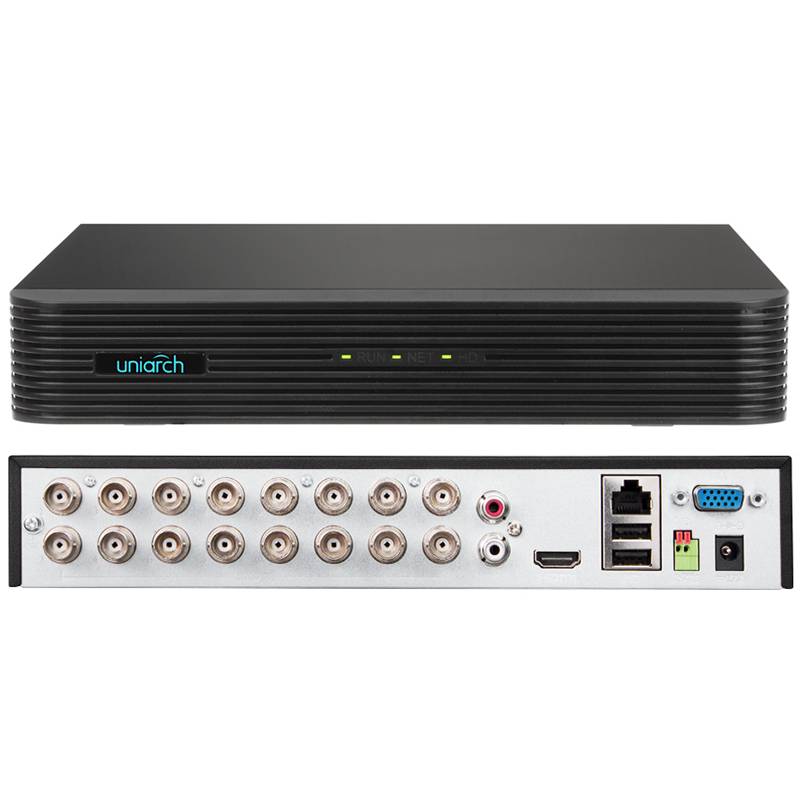

Uniarc 16 - 24 channel XVR DVR 5 in1 Supports TVI, AHD, CVI, CVBS, IP camera - 4MPX CLOUD P2P

XVR-116G2

Hybrid 16-channel, 16 Analog up to 4MP + 8 IP channels 4 MP@15fps for each channel
TOTAL 24 IP CHANNELS

Main features
It supports H.265/H.264 video formats
It supports audio via coaxial cable
It supports TVI, AHD, CVI, CVBS, adaptive access IP cameras
16-channel BNC input
Support 1-channel HDMI output, 1-channel VGA output up to 1920*1080
Long transmission distance over coaxial cable

Specifications Model
XVR-116G2

Video/audio input
Analog video input
16 channels, BNCs
IP video input
8 channels (IP only up to 16 channels), each channel up to 8 MP
Analog supported
Camera types
Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps
Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps
Support CVI input: 1080P@30fps 720P@30fps
Support CVBS input
Audio input 1 channel, RCA

Net
Incoming bandwidth
40 Mbps (up to 56 Mbps after converting all analog cameras)
64Mbps outgoing bandwidth
Remote users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE

Video/audio output
VGA output
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI output
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Sound output
1 channel, RCA
Two-way audio
1 channel, RCA Synchronous
16-channel playback
Encoding Recording Resolution
5MP Lite/4MP Lite/1080P/1080P Lite/720P/D1/CIF


Secondary stream:
5MP Lite at 6fps
D1@6fps
4MP Lite@8fps
D1@8fps
1080P Lite at 15fps
D1@6fps
720P@15fps
D1@10fps


Hard drive 1 SATA interface
Capacity Up to 6TB for each HDD
External Interface Network Interface 1RJ45 10M/100M self-adaptive Ethernet interface
USB interface
Back panel: 2 USB 2.0
1 RS485 serial interface


General
Power supply 12V DC
Power Consumption: ≤ 10W (without HDD)
Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 10.1" × 9.6" × 1.8" (260mm × 243mm × 39mm)
Weight (without HDD ) ≤1.1 kg (2.42 lbs)
Dimensions 260mm×243mm×39mm
