SIMA gate control - Sensore esterno doppia tecnologia

OUTGATE is a Dual Technology Motion Detector, specially designed for Outdoor Environments.

OUTGATE uses the combination of 2 sensors, suitably configured in AND function or in OR function:
-Radar Doppler 24 Ghz with 8 miniaturized K-band antennas.
-Passive Infrared Sensor with Exclusive Curtain Fresnel Lens which encapsulates the pyro-element, further preserving it from external agents.

The AND function presupposes the activation of both sensors for the generation of an alarm (useful for very dynamic environments).

The OR function instead uses the activation of one OR the other sensor, to generate an Alarm (useful for more stable environments). However, both functions are controlled by an integrated MICROPROCESSOR.

MAIN FEATURES

12VDC POWER SUPPLY
ABSORPTION 42mA
STAND-BY 35mA
TEMPERATURE -20 ° C + 60 ° C
FREQUENCY 24.050 - 24.250

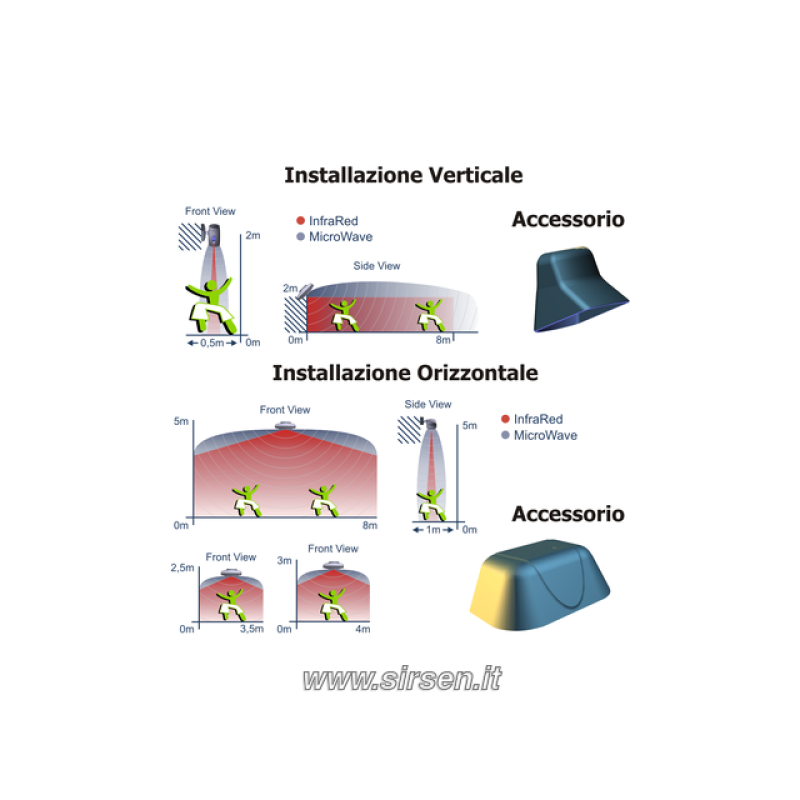

CONVERAGE MW 34 ° / 80 ° & lt; 8m
IR 34 ° / 120 ° & gt; 8m

Dimensions: & nbsp; cm11x4x6 (L x W x H)

AVAILABLE COLORS: WHITE / BROWN
