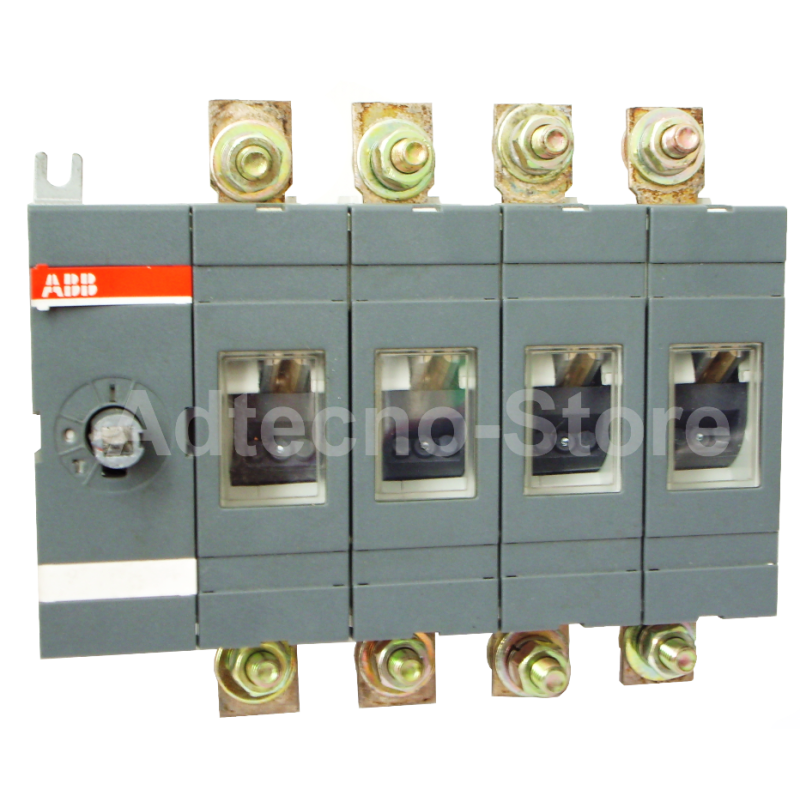

ABB SACE OT200E04 - Switch disconnectors OT

They are also available inside metal or plastic boxes to be placed near each motor to avoid accidental starts.

The range from 16 to 150 A is available in versions with square bottom or rear door, with front operation and in 3 to 8 pole versions. Switch version also available.

REFURBISHED PRODUCT WORKING

From 200 to 3150 A, these disconnectors can be supplied from the single-pole to the four-pole version, always with front control and in commutator versions.

TECHNICAL FEATURES

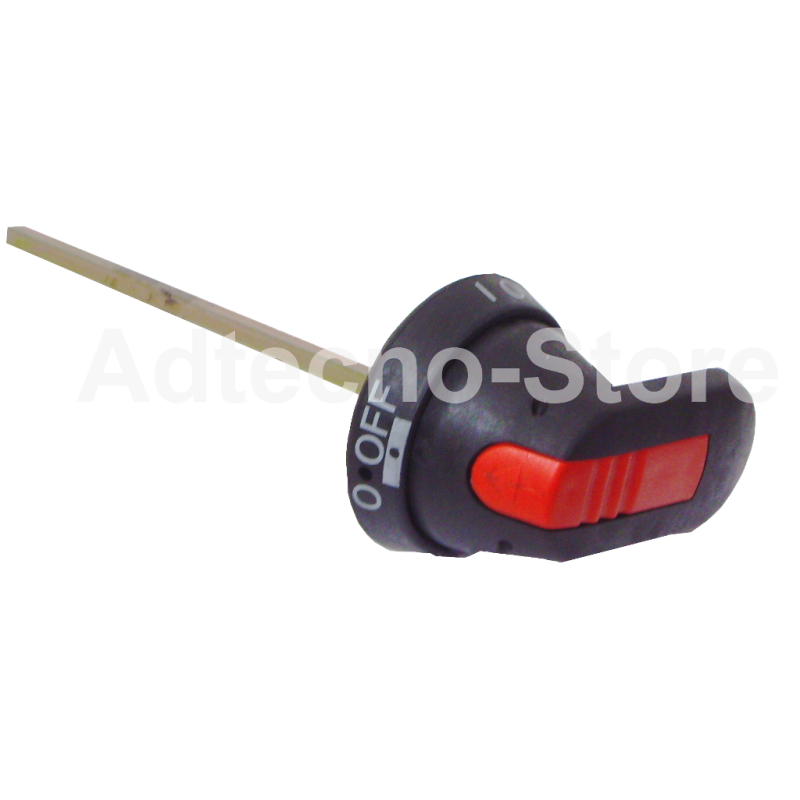

Handle and shaft included
Product Net width: 181 mm
Product Net height: 150 mm
Net product depth: 70 mm
Net product weight: 1,824 kg
Environmental RoHS Status: Designed to follow Directive 2002/95 / EC August 18, 2005 and modification after 2009 Q4
Conventional Free-air Thermal current (Ith): q = 40 ° C 200 A
Conventional thermal current (Ithe): Fully fenced 200 A
Earthing Switch type: No Additional type
IIT Publishing Status: Level 0 - Information enabled
Mounting type: Normal
Number of poles: 4
Operating mechanism: Mechanism at the end of the switch
Operating mode: Front Operated
Pollution degree: 3
Power loss: 4 W
Sizing impulse voltage (Uimp): 12 kV
Rated insulation voltage (Ui): 1000 V
Rated operational current AC-21A (Ie): (380/415 V AC) 200 A - (500 V) 200 A - (690 V) 200 A - (1000 V ac) 200 A
Rated operational current AC-22A (Ie) :( 380 ... 415 V) 200 A - (500 V) 200 A - (690 V) 200 A
Rated operational current AC-23A (Ie): (380 ... 415 V) 200 A - (500 V) 200 A - (690 V) 200 A
Rated operational power AC-23A (Pe): (220 ... 240 V) 60 Kw - (400 V) 110 kW - (415 V) 110 kW - (500 V) 132 kW - (690 V) 200 kW
Nominal voltage: 1000 V
Rated short-time withstand current (Icw): for 1 s 8 kiloampere rms
Special functions: No
Standard: IEC
Terminal Type: Lug Terminals
Declaration of Conformity - CE: 1SCC301131D0202
ETIM 5.0 classifications: EC000216 - Switch disconnector
Subject Classification Code: Q
