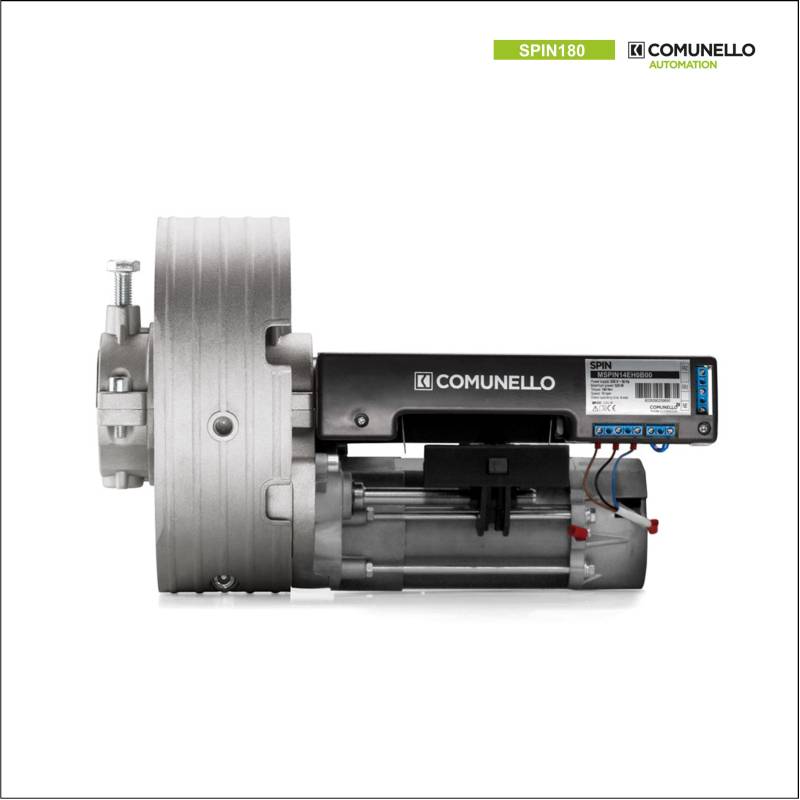

Shutter actuator 180Nm without electric brake
Body and crown in die-cast aluminum
Gears and roller bearings in steel
Crown mounted on bearing
Drive shaft mounted on double ball bearings
4-pole asynchronous motor, 1,400 rpm
Class B insulation
Thermal protection on the motor: 160°C
Easy adjustment of the limit switches
Maximum height of the shutter: 6 m
Operating temperatures: -20°C ÷ +85°C
Class I electrical insulation
Degree of protection: IP20
Provision for mounting the electric brake
Power supply: 230 V / 50 Hz
Absorption: 2.8 A 645 W
Traction force: 180 kg
Pole diameter: 48 / 60 mm
Crown diameter: 200 / 220 mm
Weight: 9.50
