CAME U1872 PLUS FAST Complete swing gate kit up to 2.3 m per leaf

01FA70230

Irreversible 230 V gearmotor with articulated transmission arm for swing gates with C max. 200 mm
with leaf up to 2.3 m and weighing 200 kg.

TECHNICAL SHEET Gearmotor

Degree of protection (IP) 54
Power supply (V - 50/60 Hz) 230 AC
Motor power supply (V - 50/60 Hz) 230 AC
Stand-by consumption (W) 5.5
Power (W) 160
Torque (Nm) 180 max
Opening time at 90° (s) 15
Intermittence/Work (%) 30
Operating temperature (°C) -20 ÷ +55
Engine thermal protection (°C) 150
Insulation class I
Capacitor (μF) 10
Weight (kg) 12.7
Engine thermal protection (°C) 150

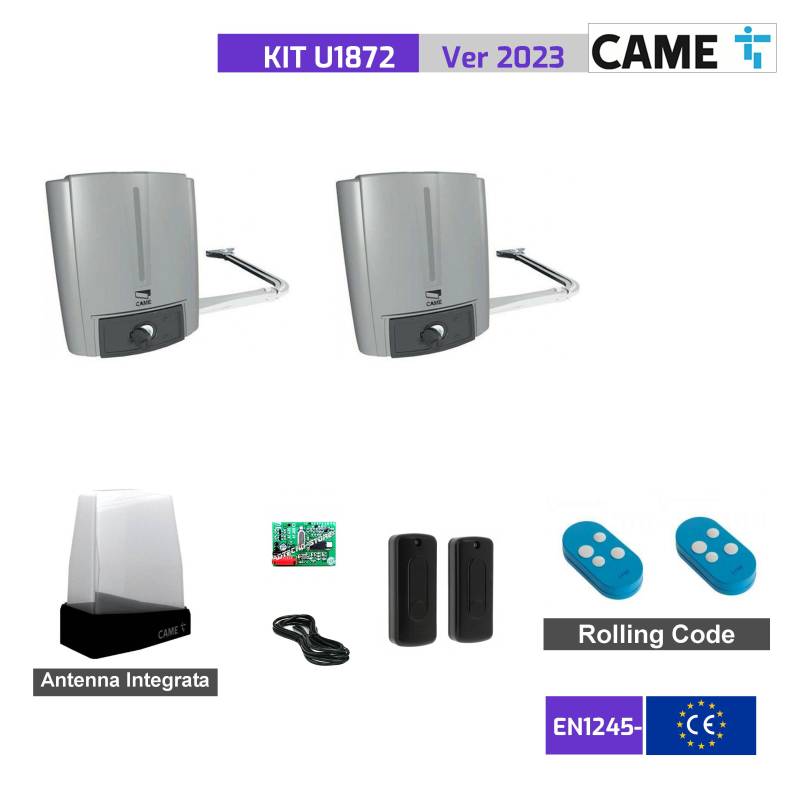

THE KIT INCLUDES..

Nr.1 001FA70230CB Irreversible 230 V gearmotor complete with electronic board and articulated transmission arm for swing gates
with C Max. 200 mm with leaf up to 2.3 m and 200 kg in weight..
Nr.1 001FA70230 Irreversible 230 V gearmotor with articulated transmission arm for swing gates with C Max. 200 mm
with leaf up to 2.3 m and weighing 200 kg
Nr.1 001AF43S Plug-in radio frequency card 433.92 Mhz.
Nr.2 001TOPD4RBS Four-channel rolling code remote control 433/868 mhz
Nr.1 001DIR10 Pair of 12 - 24 V AC - DC outdoor photocells. Range: 20m.
Nr.1 KRX1FXSW Led signaling flasher from 24 V AC - DC up to 230 V AC White with integrated antenna.
