CAME FROG-A - KIT Complete underground automation with 1 swing gate

Not yet rated Write a review
669.00
Availability:
In Stock
Product Code:
KIT-FROG-A-1
Brand:
Came
Came

trustpilot recensioni

  • Quick delivery in EU & UK

  • Easy returns within 14 days

  • Always follow your orders

  • Professional tech assistance

Description

The fully concealed automation that enhances your Frog entrance represents the synthesis of the Came design philosophy and inventiveness applied at swing gates. An extremely resistant and "practically invisible" product that maintains the aesthetics of your entrance. Special openings. Special movement levers are available to achieve leaf rotation up to 180 ° and to better manage spaces Absolute watertight integrity. The high quality standard of Frog and the degree of protection against external agents IP67 always make it perfectly functional.

TECHNICAL SHEET

Degree of protection IP67
Power supply 230 A.C. 50/60 Hz
Absorption (A) 1,9
Power (W) 200
Opening time at 90 ° (s) 18
Work intermittence (%) 30
Thrust (N) 320
Operating temp. (° C) -20 ÷ +55
Motor thermal protection (° C) 150
Max leaf width (m) 3,5
Max door weight (Kg) 300

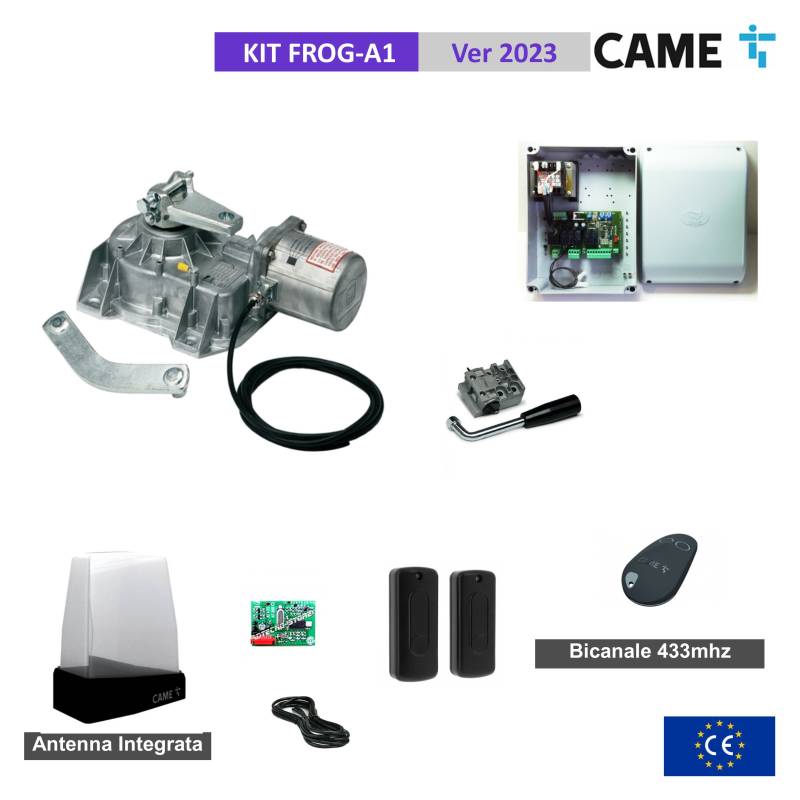

THE KIT INCLUDES ..

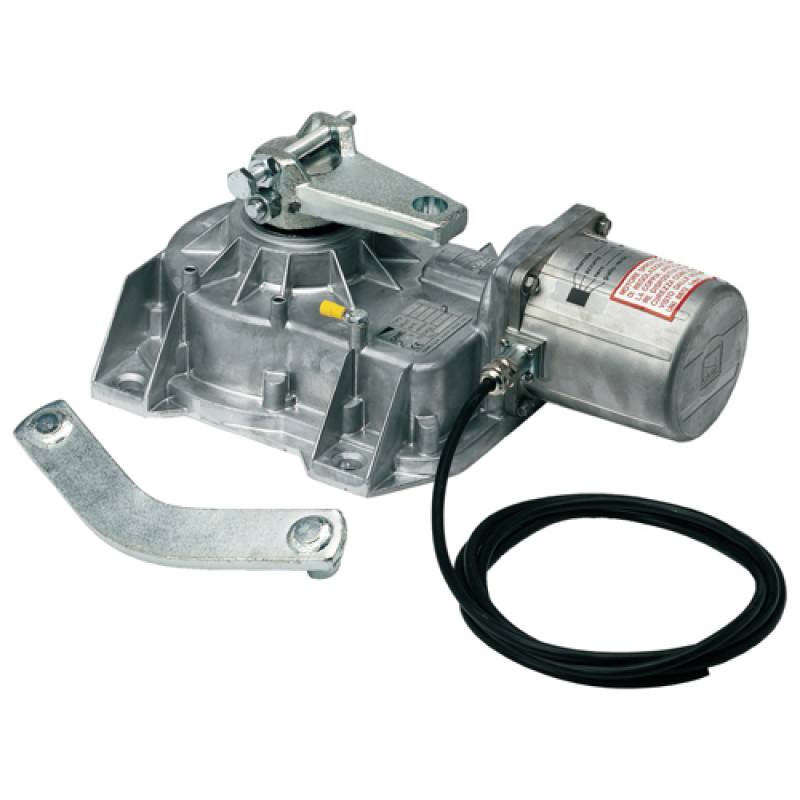

Nr. 1 001FROG-A / 230 V irreversible gearmotor for swing gates up to 3.5 m per leaf, with leaf stop in adjustable closure.
Nr. 1 002ZA5 Control panel for gates with 1 swing door and lock command.

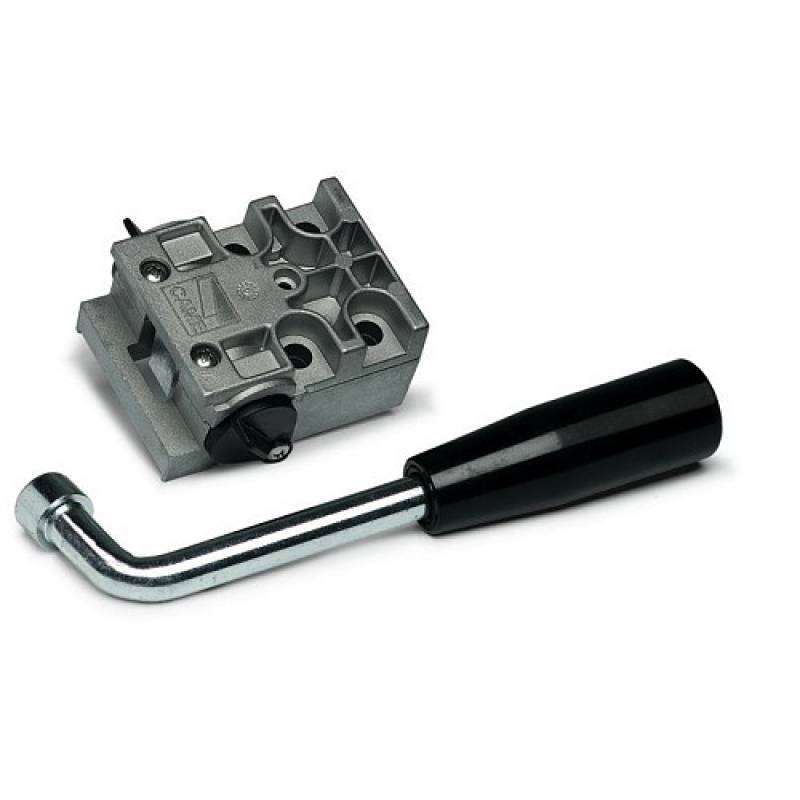

Nr. 1 001A4364 Release device with lever key.
Nr. 1 001AF43S Plug-in radio frequency card 433.92 Mhz.

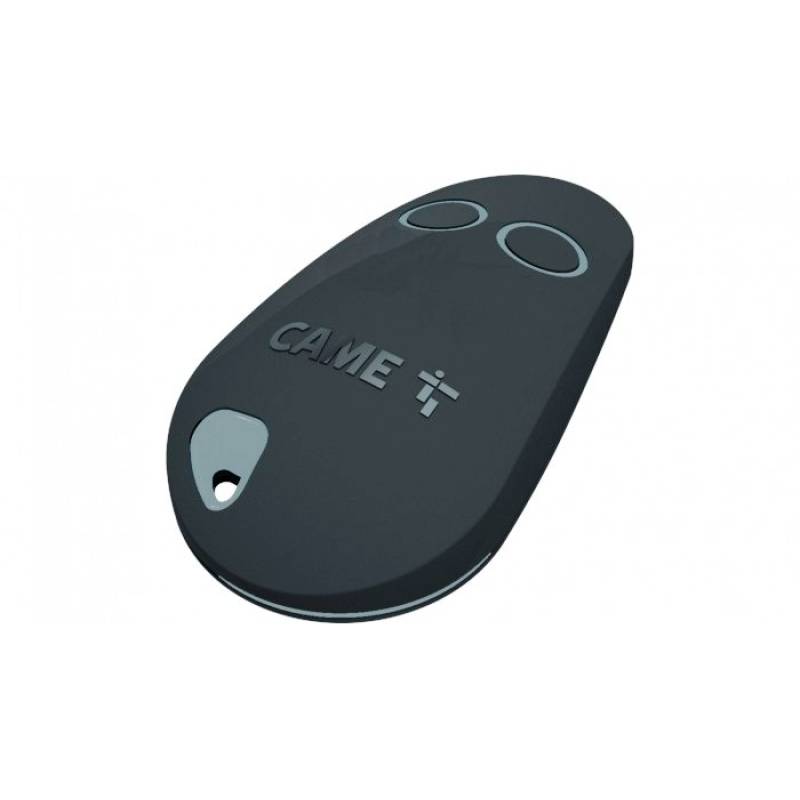

Nr. 1 001TOP-432EV Two-channel transmitter 433.92 Mhz multi-user 4,096 combinations with
Nr. 1 001TOP-A433N Antenna 433.92 Mhz.
Nr. 1 001DIR10 Pair of external photocells at 12 - 24 V AC - DC. Range: 20 m.
Nr. 1 001KLED LED signal flasher.
