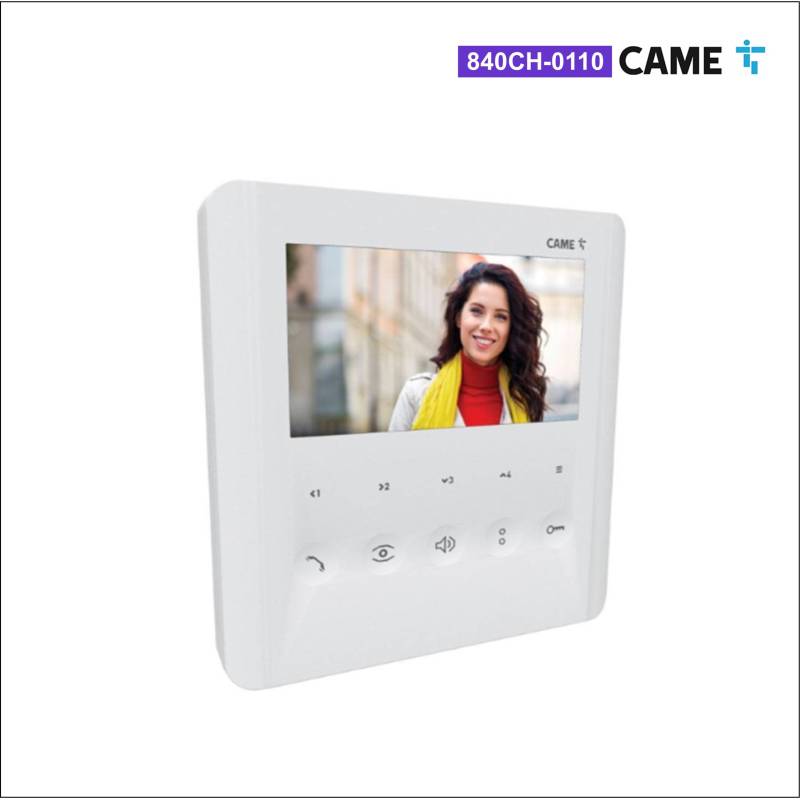

Came 840CH-0110 PLX V hands-free video intercom for X1 systems

Came BPT PLX V hands-free video intercom for X1 systems code 840CH-0110:

Soft-touch buttons
5" LCD display with OSD
4 buttons for intercom calls or auxiliary commands
White color
Retractable indicator LED
Self-insertion of video from external units
Quality hands-free audio
Soft-touch buttons
Master/Slave function and Video switching function between extensions in simultaneous call
Equipped with a button for adjusting/excluding the ringtone

Internal unit

Wall-mounted monitor with 5" color LCD display equipped with OSD for adjusting video parameters (brightness, color, contrast)
The 5 main touch buttons allow the management of primary functions such as answering and hanging up the call, opening the door, self-insertion of video from external units, adjusting/excluding the ringtone (with indicator LED when excluded) and sending a programmable auxiliary command
Suitable for multi-user systems as it allows up to 6 intercom calls and sending of the “Panic” signal to request help to the porter
If configured, it enables up to 4 additional auxiliary commands, alternatives to intercom calls
Allows management of the “open gate” function and display of the status of the controlled passage via a signal LED
The bracket for wall installation on a 503 box (horizontal or vertical) and on a Ø 60 mm round box is included

Technical data:

Dimensions (mm) 155 x 170 x 25
Power supply from BUS (V) 15 ÷ 20 DC
Absorption from BUS (mA) 200
Absorption in stand-by (mA) <1
Operating temperature (°C) +5 ÷ + 40
Degree of protection (IP) 30
Video standard PAL/NTSC
Color White
