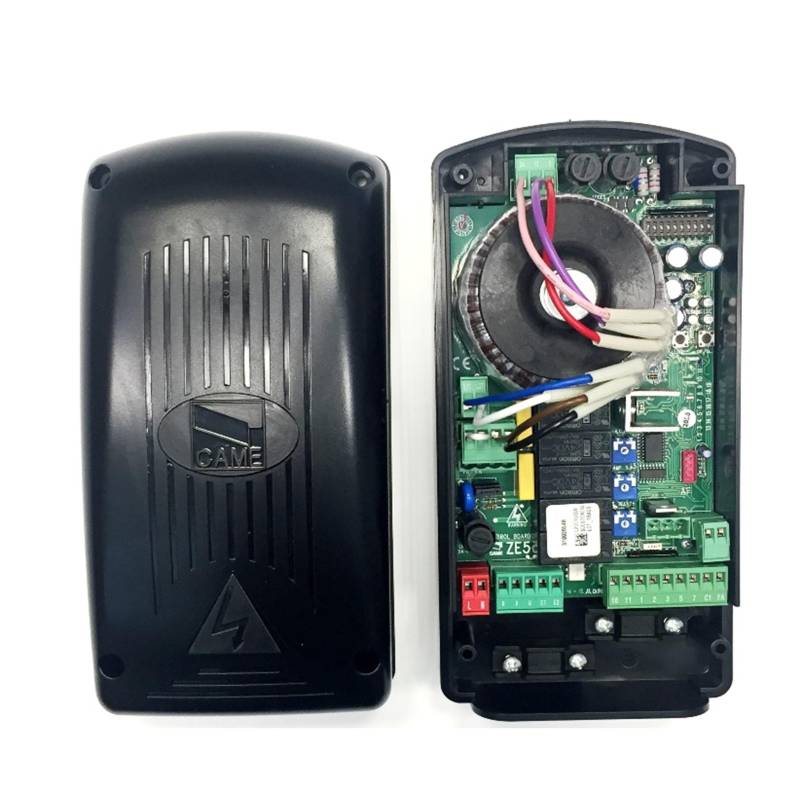

CAME 309ZE5CSI Control panel for EMEGA engine

The ZE5 control panel is suitable for controlling EMEGA series automations for up-and-over doors (E306 - E456) with double or single operator.

The control panel must be powered at 230 V AC, with a max frequency of 50/60 Hz.

The control devices and accessories are 24 V.

All connections are protected by quick fuses.

The card provides and controls the following functions

- automatic closing after an opening command.

- maintained action command.

The command modes that can be defined are:

- opening closing.

- total stop.

The photocells, after detecting an obstacle, can cause:

- reopening if the gate is closing.

- the total stop.

Special trimmers regulate:

- the intervention time of the automatic closing.

- obstacle detection sensitivity adjustment during movement: min / max.

- automatic safety intervention time adjustment: min / max.

It is also possible to connect:

- gate open signal lamp or, alternatively, an electric lock.

- courtesy lamp lighting maneuvering area for opening / closing cycle.

Technical data:

supply voltage 230 V - 50/60 Hz

maximum power allowed 400 W

absorption at rest 150 mA

maximum power for accessories at 24 V40 W

DOUBLE circuit insulation class

ABS case material

degree of protection of the container IP54

operating temperature -20 / +55 ° C
