Description

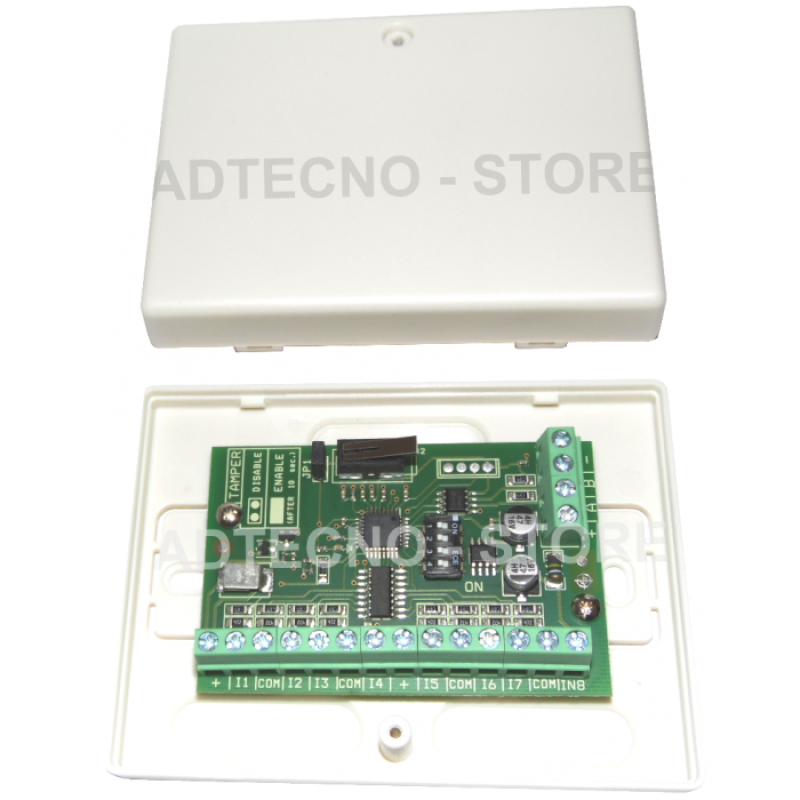

KX-in is an input expansion module. It can be used for the following control panels:

Central K4 (1 module)

Central K8 (2 modules)

Central K8Plus (7 modules)

Central X412 (1 module)

Central X824 (2 modules)

Central x864 (7 modules)

The expansion modules are contained in ABS boxes. The modules must be connected directly to the control panel RS485 bus. Very important, before powering up the control panel, set the addresses of each of the connected modules. All forms start from address 1

Feeding : 10-14 & nbsp; Vcc (nominal 13.8Vcc)

Current : 31mA @ 13.8V

Inputs : 8 per single expansion

Protection : anti-opening and anti-tearing

Bus : Monitored tamper
