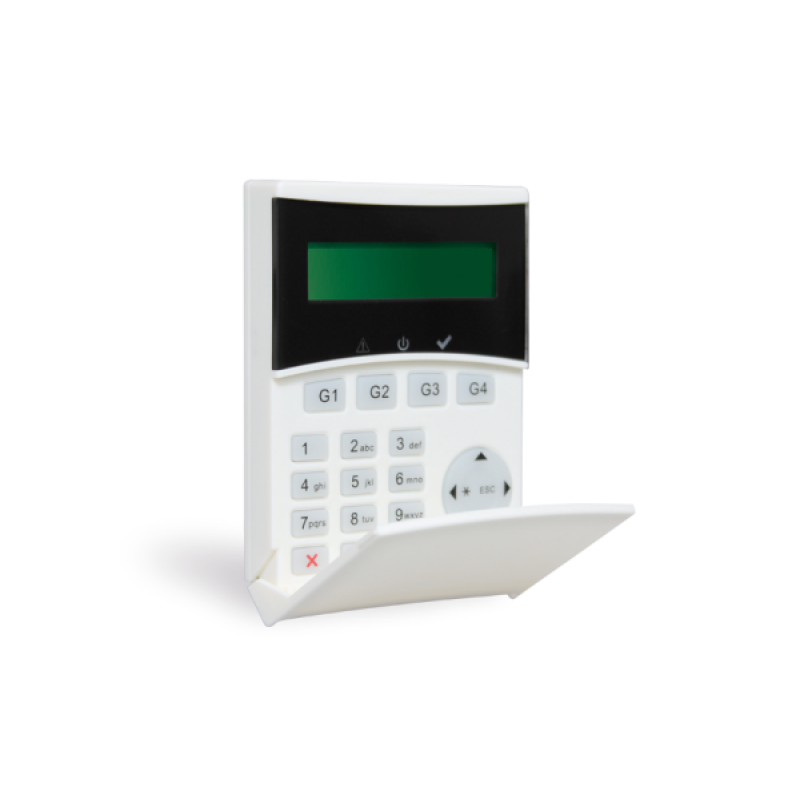

AMC K-lcd Light - backlit keyboard for all AMC control panels

AMC K-lcd Light - backlit remote keypad (compatible with all AMC alarm control panels).

TECHNICAL FEATURES

Supply voltage: 13.8 Vdc

Nominal current: 25 mA

Maximum current: 160 mA

Compatible with: all AMC control units

Addresses adjustable from the menu without the use of mechanical dip-switches

Adjustable backlight time

Language selection

Buzzer for sound input and output time

Enable and disable the tamper switch from the menu

Signaling leds:

° Green LED on: system ready (all areas closed)

° Yellow LED on: new event to be read in event memory

° Red LED on: control unit armed
