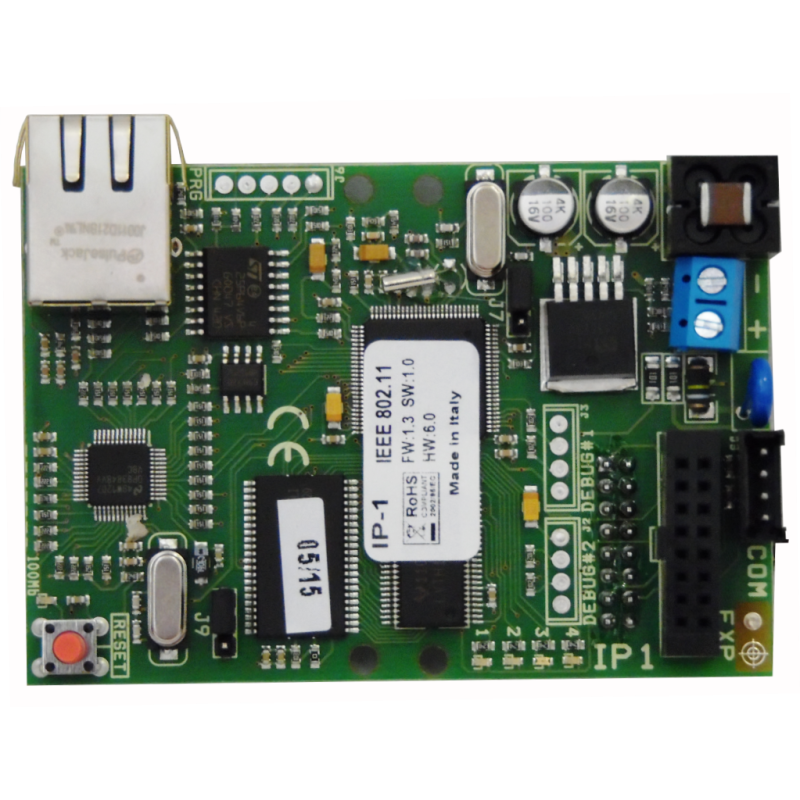

AMC IP-1 IP card (for K and X series control panels)

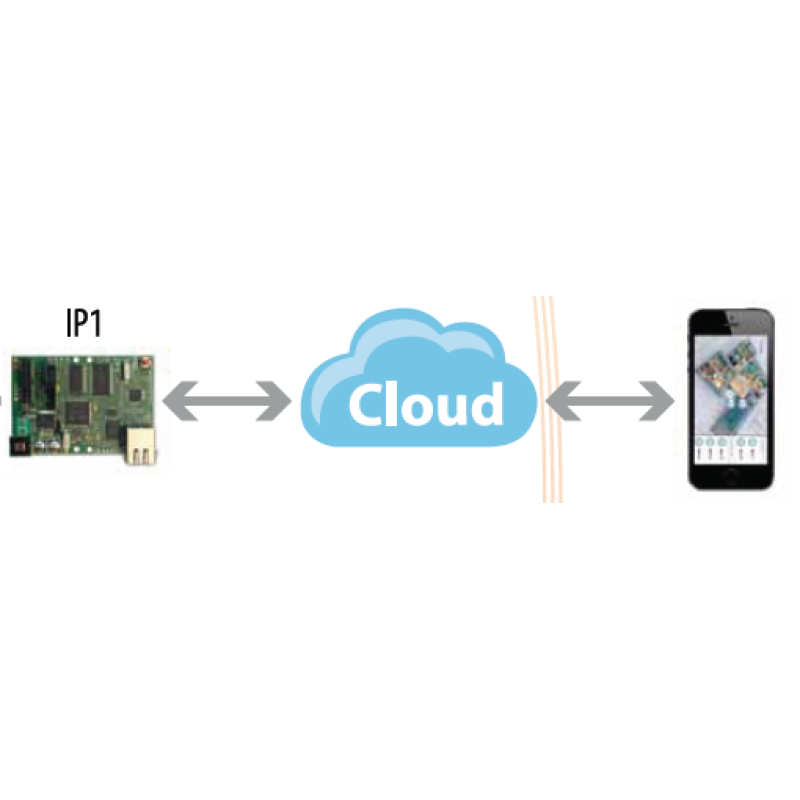

Central IP card module for Internet / Cloud connections and remote management via App (iOS - Android).

TECHNICAL CHARACTERISTICS

Power supply: 5-13.8 Vdc

Current: 163 mA @ 12V

Ram: 512 KB

Rom1: 8 MB

Rom2: 64 KB

SYS: RTOS v7.2

Lan: 10/100 Base TX IEEE 802.1 Full Duplex

Protocol: TCP / IP, TLS / SSL, AMC v1.0 protocol for X-K series systems

Green Led: on communication OK, Green & nbsp; flashing: Failed no communication, Yellow flashing: System in progress, Red 1: connection failed with cloud server, Red 2: Cable not connected

Button: Reset: Lan Board only

JP1-JP2: Normal state: JP1-2 Closed

JP1-JP2: Firmware Update & nbsp; JP1-2-3 Closed

Com: Dapter COM-S, COM-USB for firmware update only
