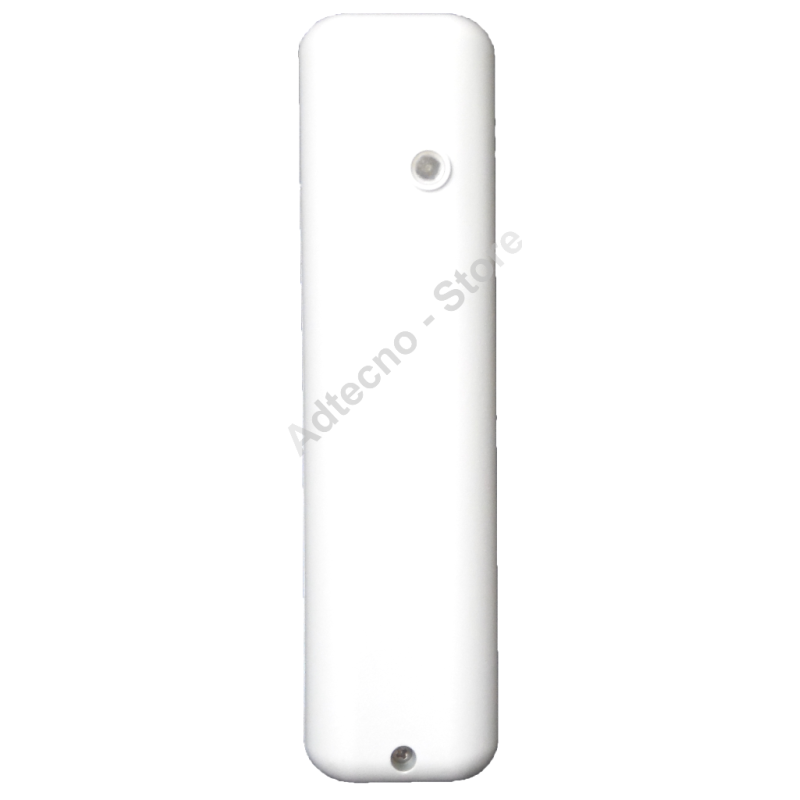

AMC EXPR800 - 868 MHZ radio expansion on 32 devices serial bus for X series

Expr / s is a radio receiver on serial bus with the possibility to memorize 32 radio devices of different type, remote controls, sensors, smoke, inertial sensors etc. Expr / s is a dual utility device, it can be used as expansion via radio on serial bus in S series control panels and as a signal repeater on R series control panels. The peculiarity of its system allows to store the same radio component in multiple devices without have operational problems. This allows to use remote controls rather than sensors in large realities without having problems with radio ranges.

TECHNICAL FEATURES

Power supply: 9 to 15 Vdc
Average consumption: 25 mA @ 13.8 Vdc
Maximum consumption: 30 mA @ 13.8 Vdc
Operating temperature: From -24 ° C to + 60 ° C
Storage temperature: From -24 ° C to + 60 ° C
Cover: ABS
Dimensions: 120 x 140 x 35 mm
Protection degree: IP34

FREQUENCY 868 MHZ only for X series
