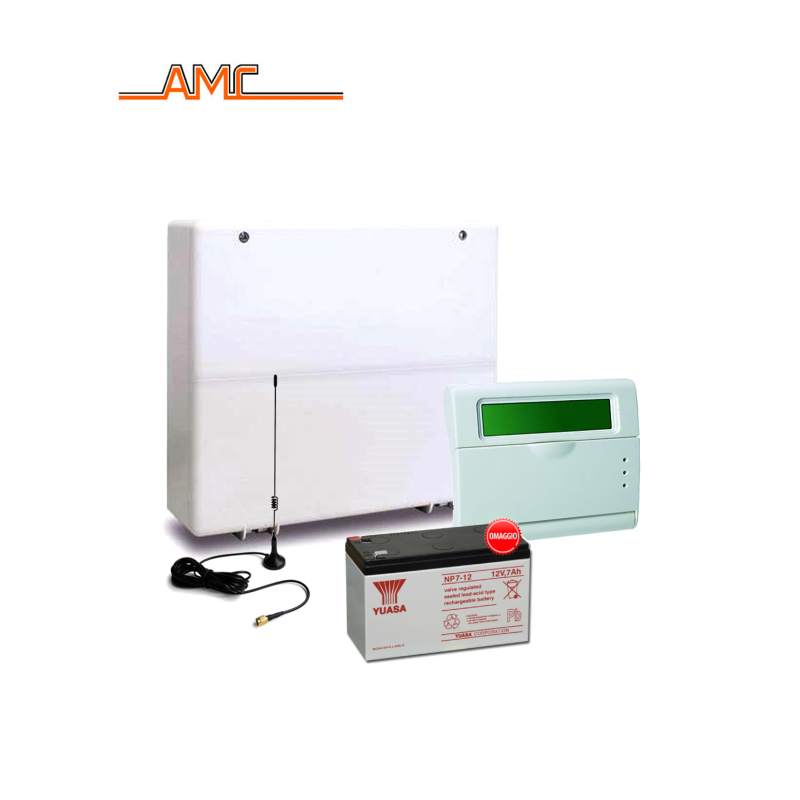

AMC - C24GSM plus Central + KLCD VOICE keyboard + Free gift -

Not yet rated Write a review
299.00
Availability:
In Stock
Product Code:
KIT-C24GSM-KLCD
Brand:
AMC Elettronica
AMC Elettronica

trustpilot recensioni

  • Quick delivery in EU & UK

  • Easy returns within 14 days

  • Always follow your orders

  • Professional tech assistance

Description

C24 Plus GSM is a control unit that manages 24 inputs with a telephone dialer on an integrated GSM line capable of sending VOICE calls, SMS and CONTACT ID digital protocols. The system is fully voice managed, both remotely from the phone and locally through an audio system integrated into the keyboard. From the keyboard it is possible to listen to which zones have gone into alarm or in case of arming which zones are not ready (open). Programming can be done via local keyboard or via SMS.
& Nbsp;
Features

Voice guidance via keyboard and remotely from telephone
24 freely programmable and configurable alarm inputs ili (8 studded + 16 expandable)
8 outputs O.C. programmable, remote and keyboard-managed through specific user menu
1 Total program
3 Partial programs

Compatibility with S series accessories:
- up to 4 keyboards
- up to 2 input expansions
- up to 4 remote sockets
12 user codes
8 programmable telephone numbers for voice calls and SMS
8 programmable telephone numbers for digital contact ID transmission
200 programmable telephone numbers for the remote control function
1 input for signaling active / inactive status of remote devices
1 input for activating / deactivating the total program
1 input for activating / deactivating a partial program
1 input for local reset of ongoing calls
1 GSM signaling error output
1 total system status output
1 partial system status output
1 simulation output of the input ring which can be used for connections with remote equipment (control units, air conditioners or equipment controlled by telephone, etc.).
1 led signaling network / GSM signal OK. (Green color)
1 signaling LED for GSM engine operations (yellow color)
1 system error LED (red color)
1 simulated PSTN telephone line, with which it is possible to telephone with a normal tone telephone,
or connect the combiner of a wired control unit.

Possibility of remote, voice-guided operations that can be carried out by the user:
- Activate / deactivate the control panel, activate / deactivate the outputs, know the system status.
- Possibility to modify parameters, by sending a simple SMS, once all the operations have been performed, a reply text message will give the requested information and confirmation of what has been done. It is possible to activate one or more outputs with a single phone ring, the system confirms the activation with a confirmation ring on the caller's phone.
- Possibility to check residual credit sim.

K-LCD VOICE KEYBOARD

AMC K-LCD VOICE remote backlit keyboard with LCD display and protective door, suitable for AMC C and S series control panels. The AMC K-LCD VOICE keyboard consists of 32 configuration and command keys arranged on two stripes. In addition to having keys with numbers from 0 to 9, the keyboard also has other keys with different symbols and functions according to the menu in which you are during the programming phase. The keyboard also has 3 LEDs for light signals. Each LED indicates different settings: system status, events in memory or control of the control unit.

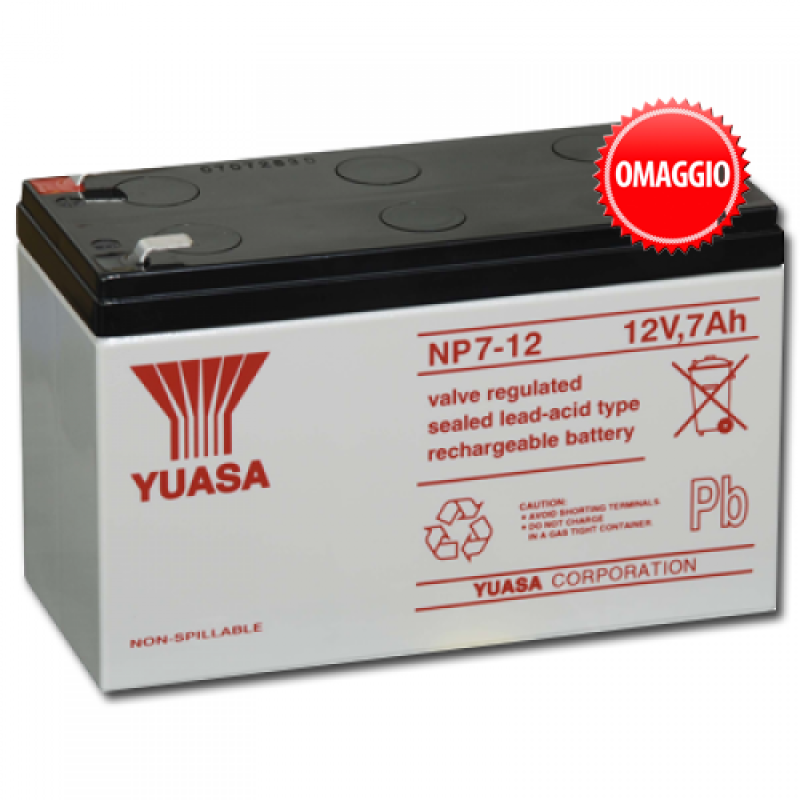

12V / Ah Yuasa battery Free


PROGRAMMING SOFTWARE click here
